Pressure tank forming glass fiber reinforced plastic water filter sand softening tank

Pressure Tank Molding FRP GRP Water Filter Sand Softner TankProduct introduction1) FRP tank is made of the advanced winding technique, with entire shaping internal bladder.2) Compared with the same models, it has the characteristics of corrosion resisting, good quality, good appearance, convenient transportation installation, go

Featured Products

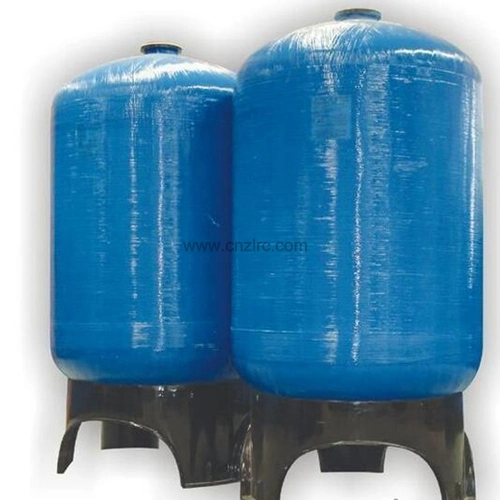

Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank

Product introduction

1) FRP tank is made of the advanced winding technique, with entire shaping internal bladder.
2) Compared with the same models, it has the characteristics of corrosion resisting, good quality, good appearance, convenient transportation installation, good seepage prevention, long using life.
3) Operation pressure is less than 0.6Mpa and operation temperature is less than 49°C
4) FRP tank has upper and under openings, and flange connections, which can form a complete set with control valves in different kinds of models and brands.
5)FRP tanks have many different Models: 871-96126(upper and under openings and side openings), 2.5'', 4'', 6'', 16'', 18'' flange

Specification

ModelTop openingBottom openingDia ×height(mm)Volume (m3)WeightSuggestion flow(m3/h)
(KG)
8182.5"threadNo200×4350.022.80.1~0.3
8352.5"threadNo200×8950.04240.2~0.4
8442.5"threadNo200×11200.05250.2~0.5
10352.5"threadNo250×8950.0665.50.4~0.8
10442.5"threadNo250×11200.08370.4~1.0
10542.5"threadNo250×13800.1018.30.5~1.2
10652.5"threadNo250×15500.1290.6~1.5
12522.5"threadNo300×13300.13191.0~2.0
12652.5"threadNo300×16400.16111.51.5~2.5
13542.5"threadNo325×13900.17211.51.8~2.5
1465B4''threadNo350x16600.24715.52.0~3.0
14652.5"threadNo350×16600.24715.52.0~3.0
16652.5"threadNo400×16600.307192.5~4.5
1665B4"threadNo400×16600.307192.5~4.5
18654"threadNo450×16600.375214.5~5.0
1865B4"thread4"thread450×14800.375213.5~4.8
21694"thread4"thread525x15700.482343.0~5.0
21884"thread4"thread525x20200.606403.0~5.0
24724"thread4"thread600×16700.666414.0~6.0
24884"thread4"thread600×20200.792545.0~9.0
30724"thread4"thread750×16601.041566.0~10.0

Structure and material

Using high-performance resin and glass fiber winding, lining with PE or ERP etc, and high-performance materials imported FRP Pressure Vessels can also meet the demands in low temperature resistance and toughness is superior to the imported ABS lining Pressure Vessels.

Product Features

1) Corrosion resistance,
2) Easy and convenient installation
3) beautiful appearance.
3) High pressure, high capacity
4) FRP tank is for industrial water treatment or residential water softener.
5) High pressure. Max pressure: 10 bar
6) High capacity. Capacity: 0.2- 100T/H
7) High quality
8) Tank color: Natural or blue (customize color available)
9) Max temperature: 120F
10) Tank inner liner: PE or ABS
11) Diameter varies.

Application

Water supply and wastewater treatment industry, light industry, chemical industry, electronics, petrochemical, pharmaceutical, food, and other industrial fields.

Work condition

Work pressure≤ 0.4MPa, work temperature≤ 49° C, maximum vacuum 127mmHg(5"Hg)
Work mediator: Water, Acid, alkali and other chemicals corrosive liquids.

Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank


Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank
Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank
Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank
Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank

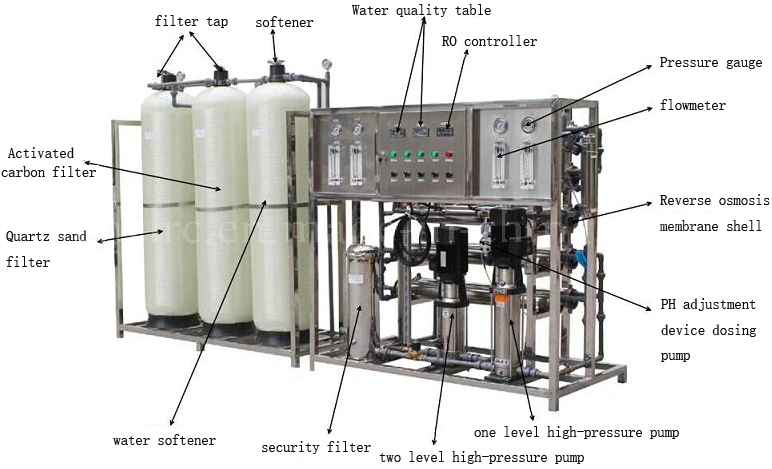

Water filter systerm introduce

Pressure Tank Molding FRP GRP Water Filter Sand Softner Tank
