Njtm Fiberglass Continuous Filament Mat 150GSM for Pultrusion Profile/Winding Process FRP Tanks and Pipes

Nanjing Tianming Fiberglass Chopped Strand Mat :Basic Parameters: Model No.: AMECWeight:150- 600 grams per sq/mWidth:up to 102.36" or up to 2600mmNet Weight per roll:66lbs±1.1lbs or 30kg±0.5kgSize of the Inner Carton Tube Length 51" * Diameter 3" * Thickness 0.2"or Length 130

Featured Products

Nanjing Tianming Fiberglass Chopped Strand Mat :
Njtm Fiberglass Continous Filament Mat 150GSM for Pultrusion Profile/Winding Process FRP Tank and Pipe
Njtm Fiberglass Continous Filament Mat 150GSM for Pultrusion Profile/Winding Process FRP Tank and Pipe


Njtm Fiberglass Continous Filament Mat 150GSM for Pultrusion Profile/Winding Process FRP Tank and Pipe

Basic Parameters:
Model No.: AMEC
Weight:150- 600 grams per sq/m
Width:up to 102.36" or up to 2600mm
Net Weight per roll:66lbs±1.1lbs or 30kg±0.5kg
Size of the Inner Carton Tube Length 51" * Diameter 3" * Thickness 0.2"
or Length 1300mm * Diameter 76mm * Thickness 5mm

Technical Date:
Loss on Ignition: 5%±1%
Moistrure: ≤0.2%
tension strength: Intensity in Horizontal ≥ 120N
Intensity in Vertical ≥ 120N

Qualified by the Third-part Test:
• The odour characteristics - RA
• VOC - SGS
• Asbestos-free - SGS
• RoHs - SGS
• SOC - Shimadzu
etc.

Uses:
• Automotive parts
• Boats/yachts
• Building components
• Chemical corrosion resistant pipes
• Cooling towers
• Tanks
etc.
Or please tell me the application of your fiberglass chopped strand mat. Then  the one most suitable for you will be recommended.

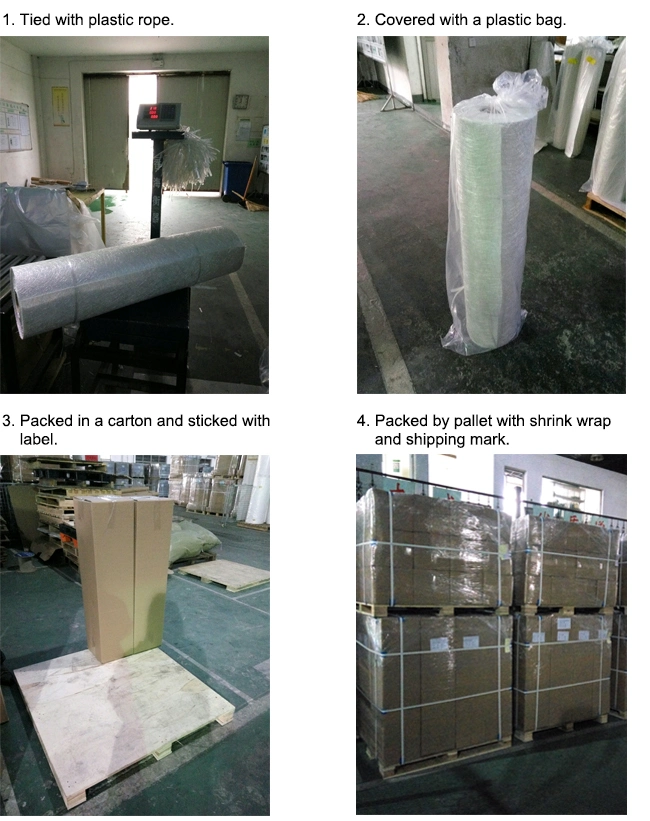

Packaging:
Njtm Fiberglass Continous Filament Mat 150GSM for Pultrusion Profile/Winding Process FRP Tank and Pipe

Loading Quantity:
One plastic bag and carton for a roll with N.W.30kg. 12 or 16 rolls on a pallet. 20 pallets (10 pallets with 12 rolls, 10 pallets with 16 rolls) in one 20' container, that is N.W. 8.4t in one 20' container.

Storage:
Unless otherwise specified, fiberglass products should be stored in a dry, cool and moistureproof area. Room temperature and humidity should always be maintained at 15°C - 35°C, 35% - 65% respectively. Best used within 12 months after production date. Fiberglass products should remain in their original packaging until just prior to use.
