K-Series Helical Speed ​​Rotary Gearbox with Output Flange Connection

K series Parallel Shaft-Helical Geared Motor Characteristics1. Features:High efficiency: 92%-93%;Vertical output, compact structure, hard tooth surface , large output torque, low noise and long service life.High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment

Featured Products

K series Parallel Shaft-Helical Geared Motor Characteristics

1. Features:
  1. High efficiency: 92%-93%;
  2. Vertical output, compact structure, hard tooth surface , large output torque, low noise and long service life.
  3. High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, grinding process to ensure high precision and stable running.
  4. High interchangeability: highly modular, serial design, strong versatility and interchangeability.
K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection
2. Technical parameters
Ratio5.36-197.37
Input power0.12-200KW
Output torque10-62800N.m
Output speed7-415rpm
Mounting typeFoot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm.
Input MethodFlange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake ReleaseHF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position)
ThermistorTF(Thermistor protection PTC thermisto)
TH(Thermistor protection Bimetal swotch)
Mounting PositionM1, M2, M3, M4, M5, M6
TypeK37-K157
Output shaft dis.25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing materialHT200 high-strength cast iron from R37,47,57,67,77,87
Housing materialHT250 High strength cast iron from R97 107,137,147,
157,167,187
Heat treatment technologycarbonitriding and hardening treatment
Single Stage Efficiencyup to 96%
LubricantVG220
Protection ClassIP55, F class

Starshine Drive

K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection
Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned military mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".
Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.

K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection

Our Team
K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection

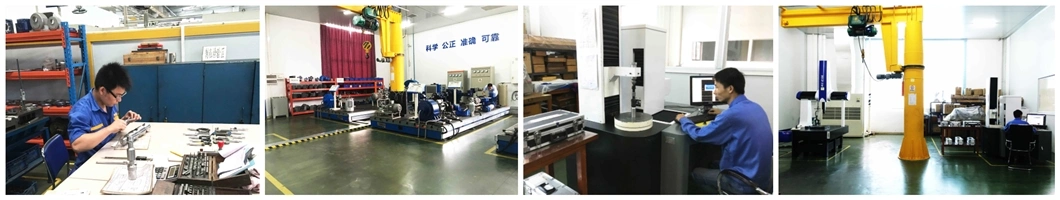

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value
K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection

K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection
3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective
measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;
 found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of
customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the
product is a product inspection to determine the qualified products.

7. Certification.
All our products get ISO & CE & UL certification.

K Series Bevel Helical Speed Reductor Gearbox with Output Flange Connection

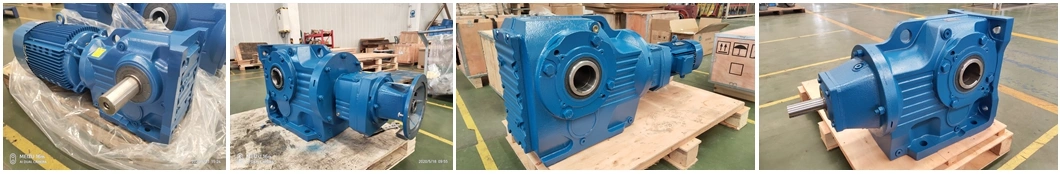

Packing
