FRP concrete street light pole tube price

Double arms highway Morden design LED street lighting pole lamps with CE CCC ISO9001 certificationfor Courtyard,Garden,Street,Park,Roadway,Sidewalk.We can according to your request to produce different specifications of the lamp and pole. The prices are different according to the specifications of the products.Getting more

Featured Products

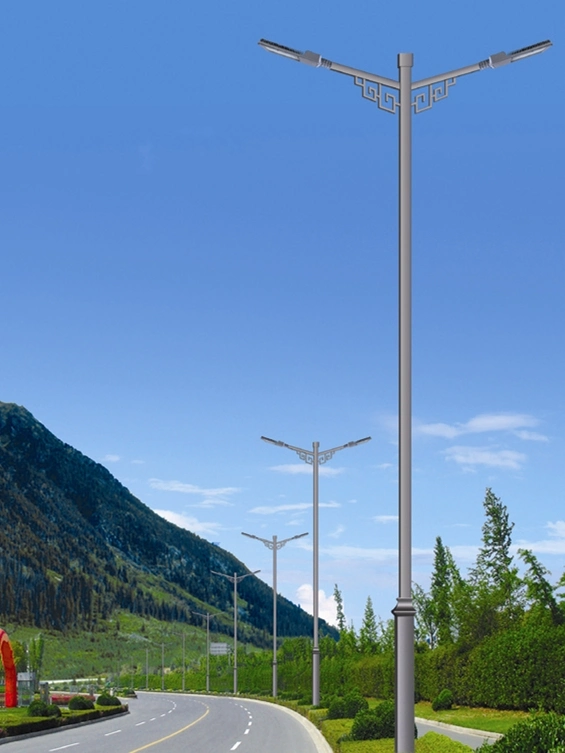

Double arms highway Morden design LED street lighting pole lamps with CE CCC ISO9001 certification
for Courtyard,Garden,Street,Park,Roadway,Sidewalk.

We can according to your request to produce different specifications of the lamp and pole. The prices are different according to the specifications of the products.Getting more information on this street light  , mail or call us please.
FRP Concrete Street Light Poles Pipe Tube Pipe Price
FRP Concrete Street Light Poles Pipe Tube Pipe Price
FRP Concrete Street Light Poles Pipe Tube Pipe Price

Item No.LW-LED-008
Power100W  150W
Luminous Flux14912LM
Installation Height10M
Lamp Efficiency125LM/W
Driver Brand Inventronics Or Meanwell
Input Voltage100-240VAC
MaterialHigh quality die-casting aluminum alloy
Dimension870x440x120mm
Packing Size880x450x130mm
Light SourceBridgelux LEDs or Customized
Power FactorPF≥0.90
Light Degradation Rate25000h ≤ 30%
Color Rendering IndexRa>80
Beam Angle120°
Color Temperature3500K-6000K
Working Temperature-40~+60°C
IP CodeIP67
Installation Caliberφ60mm
BrandLIWEI or Customized
Warranty5 years
CertificateCE, ROHS, EMC, LVD
ApplicationGarden, courtyard, road, outdoor,highway,etc.
Available ColorGray/Customized
PackingStandard export packing/According requirement.
Pieces Per Carton1Pcs/ctn
DeliverSamples :1-3 days. Orders more than 10000 unit in 10-15 working days
Payment TermsBy T/T, Western Union, L/C, etc.

LED lamp:
Lamp body and  cover materialPure aluminum
Surface treatmentElectrostatic spray
Reflector materialHigh strength of toughened glass
Cooling system materialHigh quality aluminum fins
Lamp Efficiency(%)≥95%
Color Temperature 6000K~6500K
Light source LED
Light source height3M-50M
Control systemMicrocomputer or  interaction
Working environment-40ºC~50ºC
IP ratingIP65
Warranty of  lights1-3years
Working life≥50000hours
High quality aluminum, precision work die casting, anodic oxidation
Aviation aluminum fast heat dissipation
Import LED lamp bead, super bright, good color rendering, decay resistance, no stroboscopic
Constant current drive power supply, glue technology, IC intelligent control
Glass lampshade, high pervious to light, no halo
Anticorrosion performance level TWO; Protective class IP65; Prevent to get an electric shock level ONE class
Waterproof and dustproof, high efficiency and energy saving, healthy environmental protection, long life
BrandSenfa
Voltage220V-240V
Power100W-150W
MaterialSteel
Surface treatmentGalvanized,   thickness of zinc layer≥85um
Powder coated,   thickness of coating≥145um
Ground installationSquare or round flange with stainless steel bolts
Embeded partsWith embeded parts
Height:6-15m
HeightTop DiaBottom DiaThickness of polelength of armSize of flange
6m60mm120mm2.75mm1.2m260*260*12mm
7m70mm135mm3mm1.2m280*280*14mm
8m70mm150mm3.25mm1.2m280*280*14mm
9m76mm150mm3.5mm1.2m300*300*16mm
10m80mm160mm3.75mm1.5m320*320*16mm
11m80mm180mm3.75mm1.5m340*340*16mm
12m80mm180mm4mm1.5m360*360*16mm
14m80mm210mm4.5mm1.8m400*400*18mm
15m120mm215mm5mm2.0m500*500*20mm








Specification

Technical Information
MaterialSteel, carbon steel
TypePolygon or round
Corrosionhot-galvanized
Thickness of Pole2.75-5mm
Thickness of Flange10-19mm
Height2m-50m
CertificateISO, CE,RoHS, IEC
Warranty20 years

Product Description

Steel Pole Details
Light pole material selects the high quality low carbon steel manufacturing.
The height,diameter and thickness will produce as your required. There is a flange at the bottom of the light pole.
Electrostatic spray after galvanized.The color can be customized.

Steel Pole Details
Light pole use automatic submerged arc welding.
Light pole embalmed using internal and external hot dip galvanized. Galvanized process including washing, phosphating, pickling, galvanizing, passivation , etc.





Bracket Details
Light bracket use automatic submerged arc welding, internal and external hot dip galvanized.



Embedded Part Details
Using Q235 high quality steel , very thick steel panel and stainless steel bolts to make sure the stability of the pole.

Pole Installation





Packaging&Loading
