ASME SA192 High pressure Boiler Tube
Forming Technics: Cold drawn
Outer diameter: 12.7mm~177.8mm
Wall thickness: 2mm~25mm
Length: 6meters, 12meters, by random
Standard: ASTM A450/A450M
Steel Grade: Low Carbon Steel materials
ASME SA192 Cold Rolled High Pressure Seamless Carbon Steel Pipe High Pressure Boiler Tube
Chemical Composition of SA192 tubes:
C0.06~0.18
Mn0.27~0.63
PMax. 0.035
SMax. 0.035
SiMax. 0.25
Physical properties of SA192 Tubes:
Tensile StrengthMin. 325Mpa
Yield StrengthMin. 180 Mpa
ElongationMin. 35%

Diamensional tolerances:
Types of steel tubesOuter diametersWall thickness
Cold-rolled tubesTube sizes(mm)Tolerances(mm)Tube sizes (mm)Tolerances(mm)
>30~50±0.3>3~20±10%

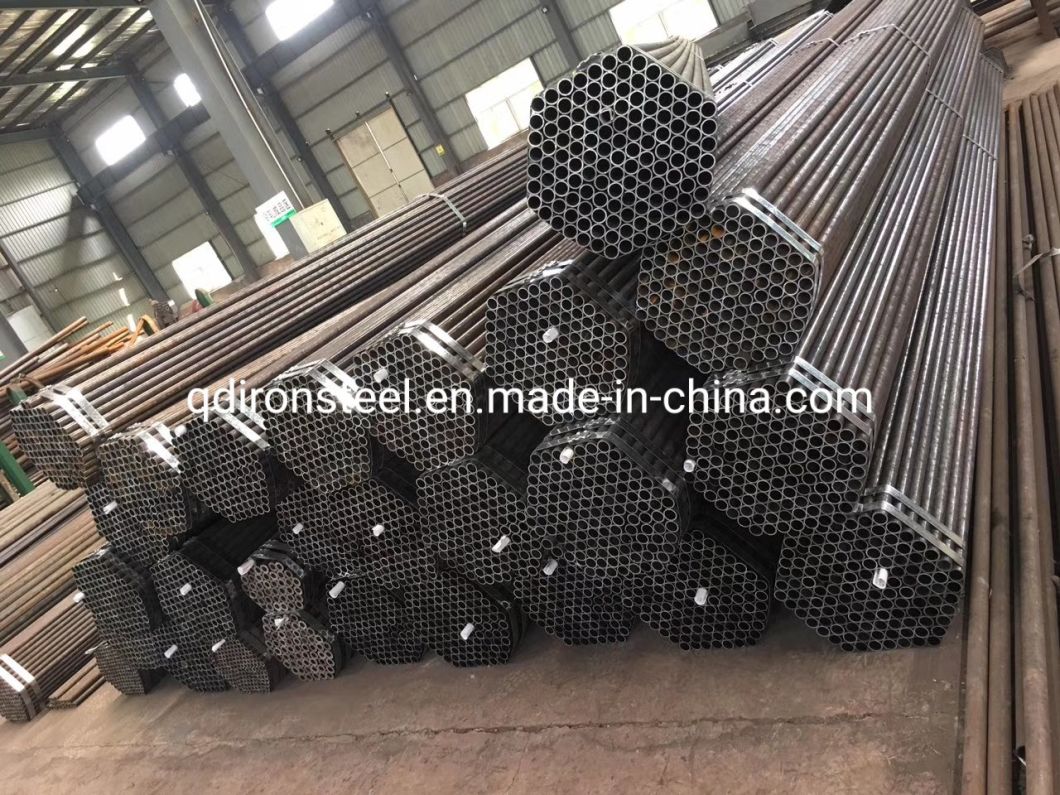

ASME SA192 Cold Rolled High Pressure Seamless Carbon Steel Pipe High Pressure Boiler Tube

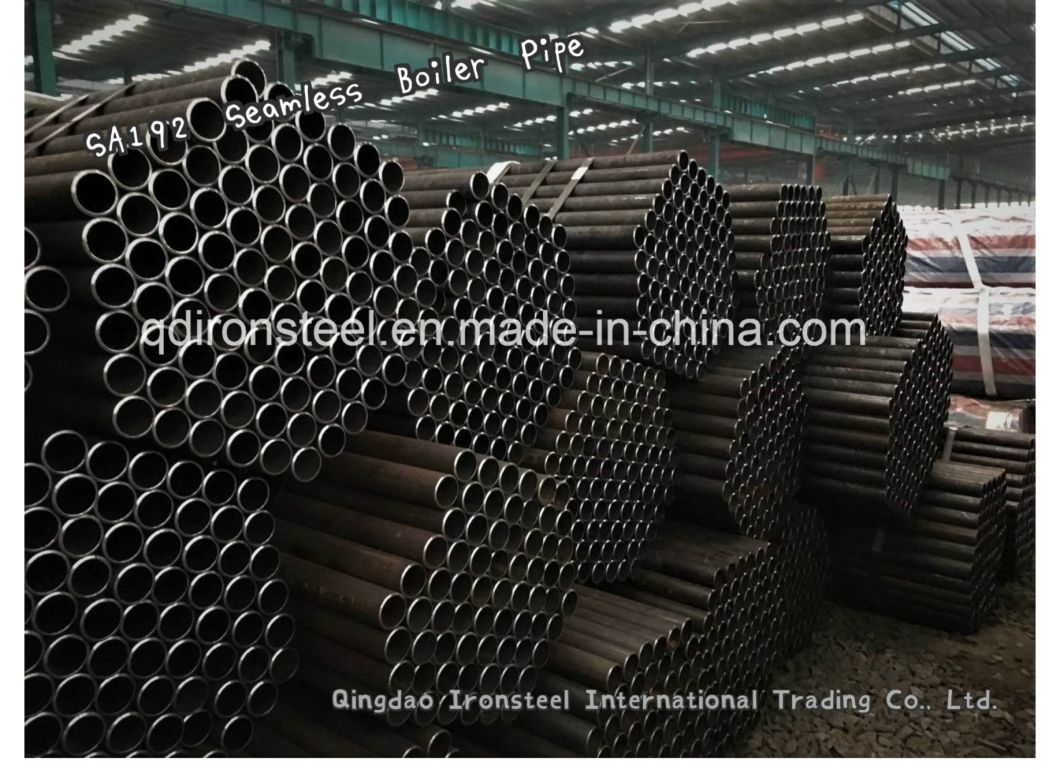

ASME SA192 Cold Rolled High Pressure Seamless Carbon Steel Pipe High Pressure Boiler Tube

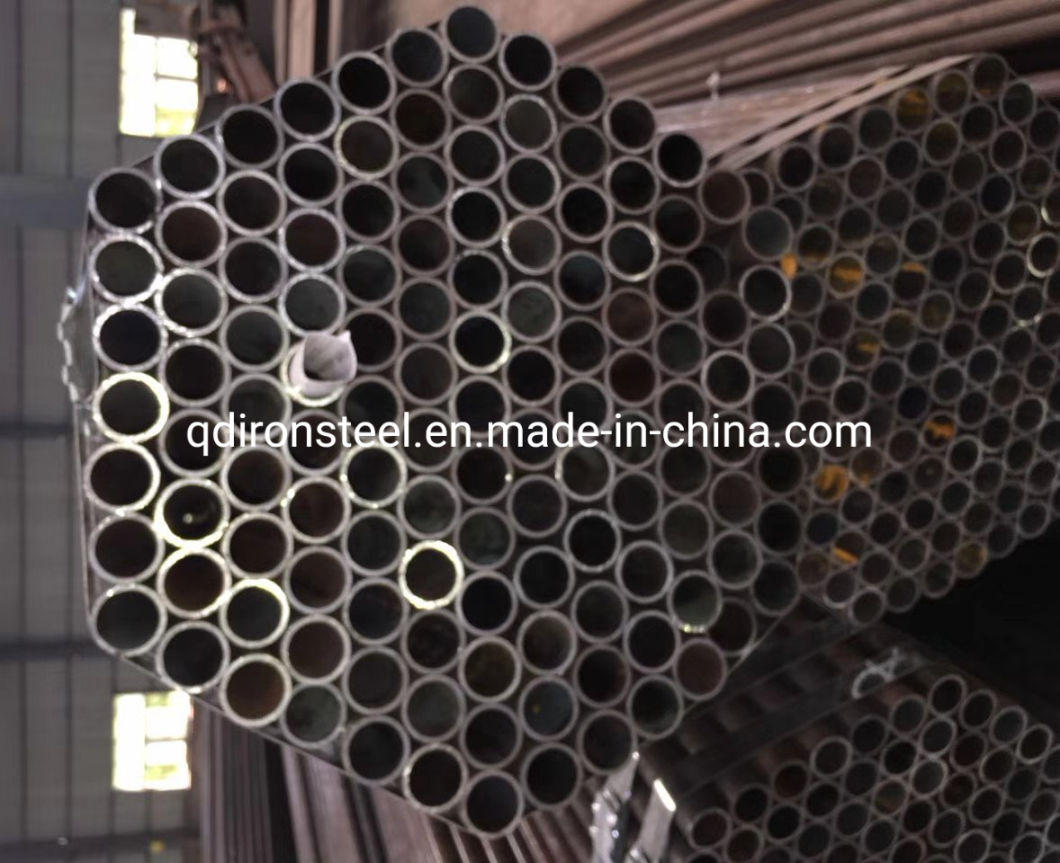

ASME SA192 Cold Rolled High Pressure Seamless Carbon Steel Pipe High Pressure Boiler Tube


ASME SA192 Cold Rolled High Pressure Seamless Carbon Steel Pipe High Pressure Boiler Tube
Mechanical properties for main carton seamless pipes:
Standard codesModels of steel tubesTensite strength(MPa)Yield strength(MPa)Elongation(%)Hardness
GB308710335~475≥195≥24/
20410~550≥245≥20/
GB531020G410~550≥245≥24/
20MnG≥415≥240≥22/
25MnG≥485≥275≥20/
15CrMoG440~640≥235≥21/
12Cr2MoG450~600≥280≥20/
12Cr1MoVG470~640≥255≥21/
12Cr2MoWVTiB540~735≥345≥18/
10Cr9Mo1VNb≥585≥415≥20/
ASME SA210SA210A-1≥415≥255≥30≤143HB
SA210C≥485≥275≥30≤179HB
ASME SA213SA213 T11≥415≥205≥30≤163HB
SA213 T12≥415≥220≥30≤163HB
SA213 T22≥415≥205≥30≤163HB
SA213 T23≥510≥400≥20≤220HB
SA213 T91≥585≥415≥20≤250HB
SA213 T92≥620≥440≥20≤250HB
DIN17175ST45.8/III410~530≥255≥21/
15Mo3450~600≥270≥22/
13CrMo44440~590≥290≥22/
10CrMo910480~630≥280≥20/

Chemical composition for main carbon seamless steel pipes:
Standard codesModels of steel tubesChemical compositions(%)
CSiMnPSCrMoCuNiVAlWTiNbN
GB3087100.07~0.130.17~0.370.38~0.65≤0.030≤0.0300.3~0.65/≤0.25≤0.30//
200.17~0.230.17~0.370.38~0.65≤0.030≤0.0300.3~0.65/≤0.25≤0.30//
GB531020G0.17~0.240.17~0.370.35~0.65≤0.030≤0.030≤0.25≤0.15≤0.20≤0.25≤0.08
20MnG0.17~0.240.17~0.370.70~1.00≤0.030≤0.030≤0.25≤0.15≤0.20≤0.25≤0.08
25MnG0.18~0.240.17~0.370.80~1.10≤0.030≤0.030≤0.25≤0.15≤0.20≤0.25≤0.08
15CrMo0.12~0.180.17~0.370.40~0.70≤0.030≤0.0300.80~1.100.40~0.55≤0.20≤0.30
12Cr2MoG0.08~0.15≤0.500.40~0.70≤0.030≤0.0302.00~2.500.90~1.20≤0.20≤0.30
12Cr1MoV0.08~0.150.17~0.370.40~0.70≤0.030≤0.0300.90~1.200.25~0.35≤0.20≤0.300.15~0.30
12Cr2MoWVTiB0.08~0.150.45~0.750.45~0.65≤0.030≤0.0301.60~2.100.50~0.65≤0.20≤0.300.28~0.42 0.30~0.550.08~0.15B 0.002~0.008
10Cr9Mo1VNb0.08~0.120.20~0.500.30~0.60≤0.020≤0.0108.00~9.500.85~1.05≤0.20≤0.400.18~0.25≤0.015  0.06~0.100.03~0.07
ASME SA210SA210A-10.13~0.19≥0.10.45~0.65≤0.030≤0.030
SA210C0.18~0.24≥0.10.80~1.10≤0.030≤0.030
ASME SA213SA213 T110.05~0.150.50~1.00.30~0.60≤0.030≤0.0301.00~1.500.50~1.00
SA213 T120.05~0.15≤0.500.30~0.61≤0.030≤0.0300.80~1.250.44~0.65
SA213 T220.05~0.15≤0.500.30~0.60≤0.030≤0.0101.90~2.600.87~1.13
SA213 T230.04~0.10≤0.500.10~0.60≤0.030≤0.0301.90~2.600.05~0.30   ≤0.0301.45~1.75B0.0005~0.0060.02~0.08≤0.040
SA213 T910.08~0.120.20~0.500.30~0.60≤0.020≤0.0108.00~9.500.85~1.05 ≤0.400.18~0.25≤0.015  0.06~0.100.03~0.07
SA213 T920.07~0.13≤0.500.30~0.60≤0.020≤0.0108.50~9.500.30~0.60 ≤0.400.15~0.25≤0.0151.50~2.00B 0.001~0.0060.04~0.090.03~0.07
DIN 17175ST45.8/III≤0.210.10~0.350.40~1.20≤0.040≤0.040
15Mo30.12~0.200.10~0.350.40~0.80≤0.035≤0.035 0.25~0.35
13CrMo440.10~0.180.10~0.350.40~0.70≤0.035≤0.0350.70~1.100.45~0.65
10CrMo910
