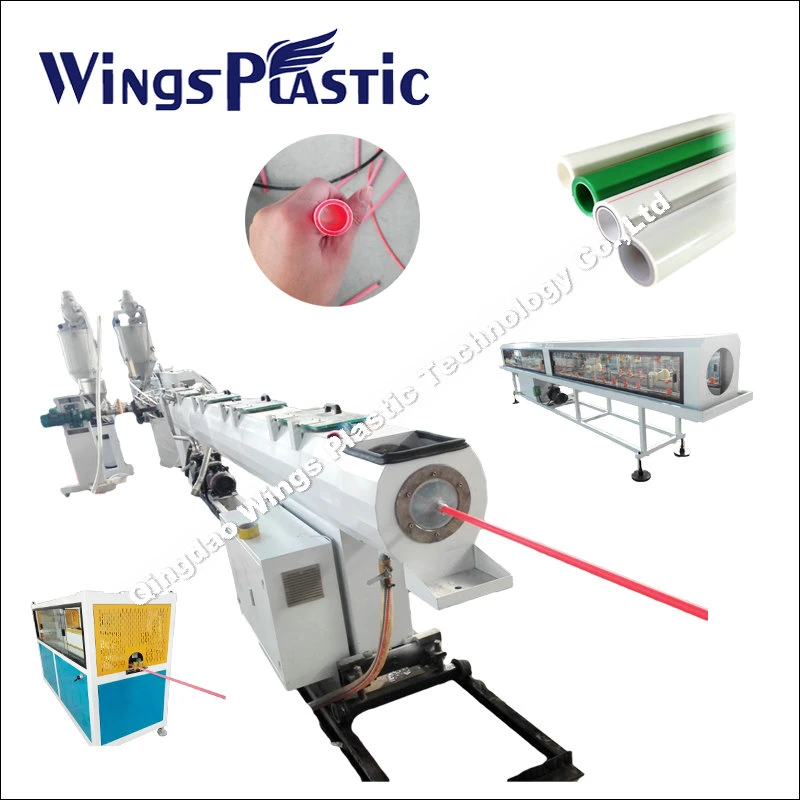

16-63mm PPR Pipe Production Line/PPR Pipe Extrusion Line

Qingdao City PPR pipe production line / extrusion machine / PPR pipe making machinery
PPR pipe production line is mainly composed of:
1. Autoloaders and dryer,
2.Single Screw Extruder
3. Vacuum calibration and cooling tank
4. Extended water cooling tank
5. Haul off machine
6. Printer(meter counting printer or ink jet printer)
7. Cutter
8. Stacker

PPR pipe production/extrusion line / PPR pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.

Main advantages:

1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.

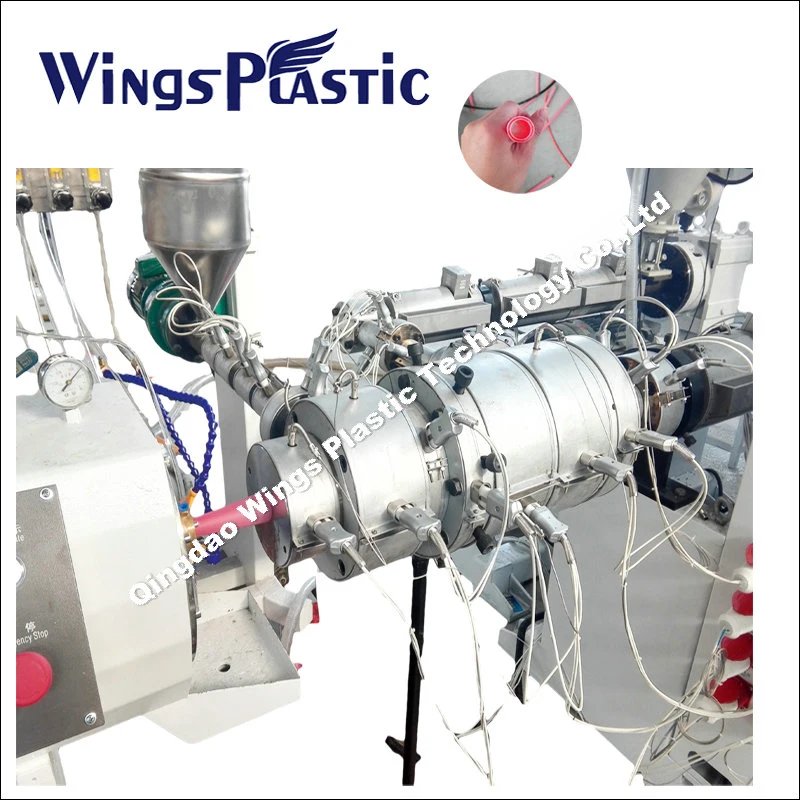

3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.

ModelPP-R-32PP-R-110
Specifications of extruderSJ65/30SJ90/30
Pipe Type(mm)φ16- φ 63φ 75- φ 110
 Production line speed(m/min) ≥ 10 ≥ 5
 Air pressure(≥ 0.6MPa)(m3/min) 0.3 0.5
 Cooling water flow rate(m3/h) 2 8
 Total power(kw) 55 120
 Dimension(mm)20000*4000*1700 30000*5000*1750
 Weight(kg) 3500 4500

16-63mm PPR Pipe Production Line/PPR Pipe Extrusion Line
16-63mm PPR Pipe Production Line/PPR Pipe Extrusion Line
16-63mm PPR Pipe Production Line/PPR Pipe Extrusion Line
